Storz MIP-L: Percutaneous Nephroscope

Storz MIP L



Endoscope Details:

Reference number: 27840 KA

Working channel size in Fr. Working channel size in mm Instrument channel length including bridge in mm
12.4 Fr. for use with instruments up to 11.5 Fr.  4 mm for use with instruments up to 3 mm  347 mm



For more information, please visit the manufacturer`s website: Link





Recommended probe:

 Color Reference number Probe Diameter and length Minimum Diameter (working channel) Maximum Lenght (working channel) Most commonly used with these nephroscopes

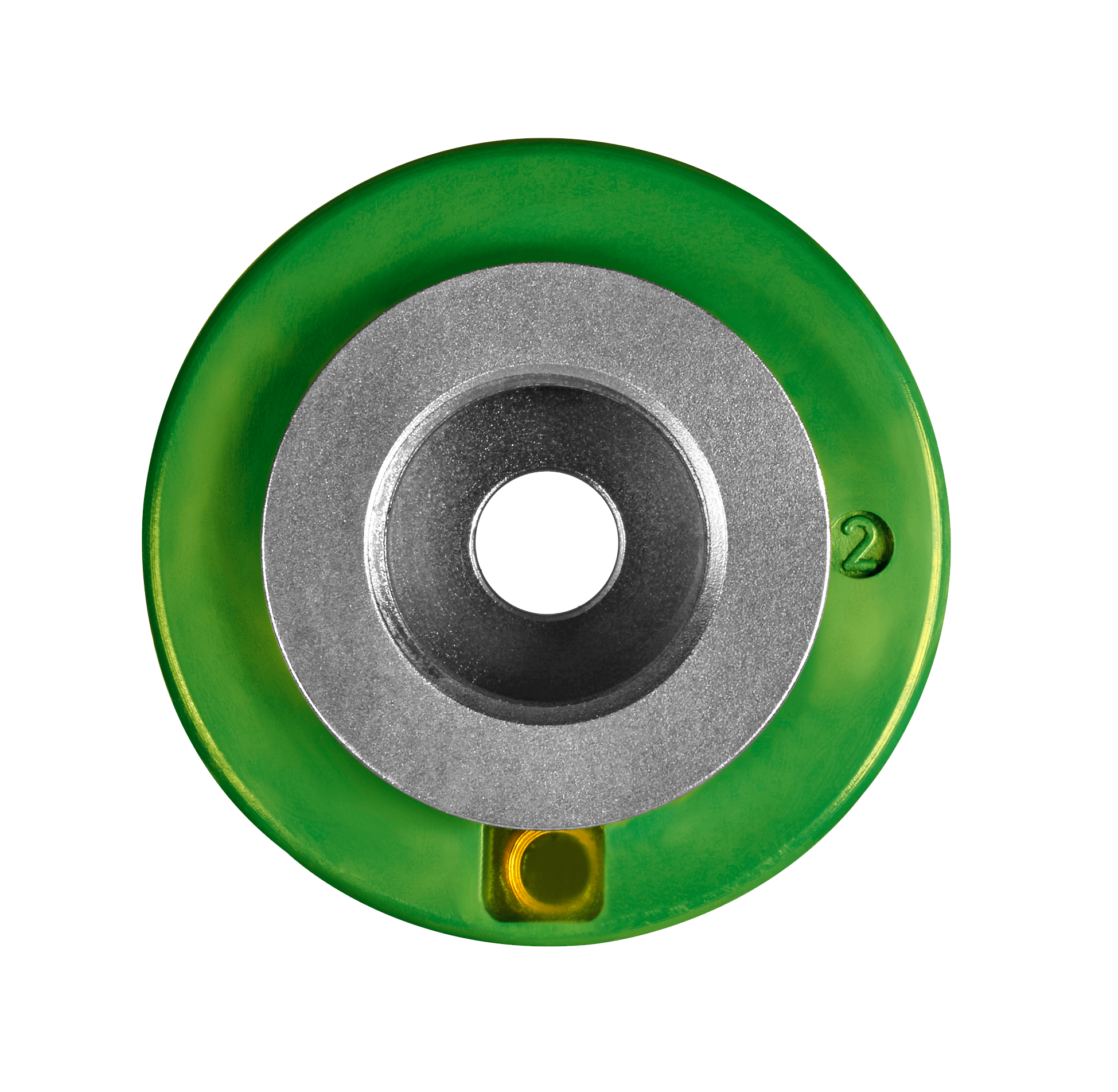

Green

 FR-248 3.4 mm x 445 mm 10.5 Fr 420 mm 24 Fr Nephroscope (long)





Clinical proof

Evaluation of intrarenal pressure stability at different lithotripter suction settings in a porcine kidney model

Strittmatter, F., Nagele, U., Schachtner, J. et al. Evaluation of intrarenal pressure stability at different lithotripter suction settings in a porcine kidney model. World J Urol (2021). https://doi.org/10.1007/s00345-021-03679-5



Intrarenal pressure levels with different suction levels were evaluated for Storz® Nephroscopes MIP-M and MIP-L in combination with Swiss LithoClast® Trilogy probes in an ex vivo porcine kidney model.

View study
