STORZ MIP-M: Mini-Nephroscope

Storz MIP M



Endoscope Details:

Reference number: 27830 KA

Working channel size in Fr. Working channel size in mm Instrument channel length including bridge in mm
6.7 Fr. for use with instruments up to 5 Fr.  2.21 mm for use with instruments up to 1,65 mm 347 mm



For more information, please visit the manufacturer`s website: Link





Recommended probe:

Color Reference number Probe Diameter and length Minimum Diameter (working channel) Maximum Lenght (working channel) Most commonly used with these nephroscopes

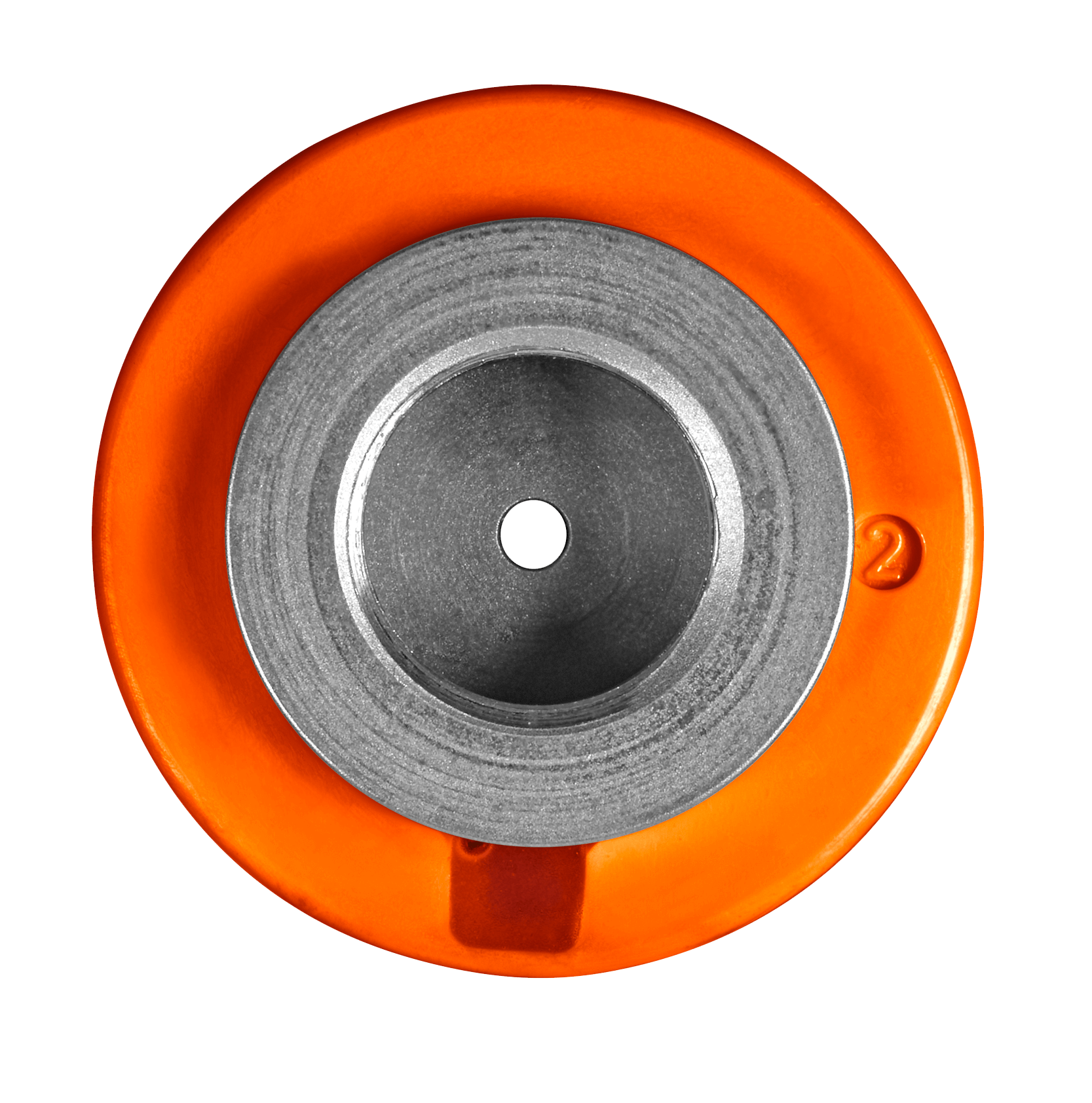

orange probe

Orange

 FR-250 1.5 mm x 440 mm 4 Fr 400 mm Mininephroscope



Recommendations:

- Use the 6Fr bridge, if available

- Limit Swiss LithoClast Trilogy suction to 10%. For further information on irrigation settings, please see a related study.

- Can also work with FR-252 (orange)



Clinical proof

Evaluation of intrarenal pressure stability at different lithotripter suction settings in a porcine kidney model

Strittmatter, F., Nagele, U., Schachtner, J. et al. Evaluation of intrarenal pressure stability at different lithotripter suction settings in a porcine kidney model. World J Urol (2021). https://doi.org/10.1007/s00345-021-03679-5



Intrarenal pressure levels with different suction levels were evaluated for Storz® Nephroscopes MIP-M and MIP-L in combination with Swiss LithoClast® Trilogy probes in an ex vivo porcine kidney model.

Studie ansehen
